NASA Map Shows Large Portions of Greenland are Melting from Below

During recent years, as human fossil-fuel emissions have forced the Earth to warm, observations of Greenland’s surface has indicated a rising rate of melt. What has been less well-observed is melt rates beneath the ice and near the ice base. This is important because the pooling of water beneath the great ice sheet can help speed its movement toward ocean outlets, along with accumulating heat at the base of the ice — which can also quicken the pace of overall melt.

A new scientific study headed by NASA researchers has developed one of the first comprehensive maps of melt along Greenland’s basal zone, where the ice contacts the ground surface. What they have found is that large portions of Greenland are melting from below:

Greenland basal thaw map

(New, first-of-its-kind map shows extensive melt along the Greenland ice sheet base. Melt in this region is a sign that heat is building up beneath the ice as well as on top. Image source: NASA.)

This mapping study found that wide expanses of northern Greenland and pretty much all of southern Greenland are now experiencing melt at the ice sheet base. As the interior of Greenland has a cracked-bowl topography — with land bowing down into a central trough and numerous furrows connecting the ice sheet with the ocean — understanding where liquid water and heat are pooling at the bottom of the ice sheet will help scientists to get a better idea of how Greenland’s glaciers will respond to human-forced warming.

Joe MacGregor, lead study author and glaciologist at NASA’s Goddard Space Flight Center in Greenbelt, Maryland recently noted:

“We’re ultimately interested in understanding how the ice sheet flows and how it will behave in the future. If the ice at its bottom is at the melting-point temperature, or thawed, then there could be enough liquid water there for the ice to flow faster and affect how quickly it responds to climate change.”

Geothermal Melt, Ice Sheet Heat Accumulation, and Climate Change

Melt along the base of the Greenland ice sheet has long been influenced by heat welling up from or trapped near the Earth’s surface. The heavy, thick ice sheet densely packs the ground and rocks under it, which generates and amplifies geothermal hot-spots beneath Greenland. In addition, the ice creates a kind of insulating layer which locks that ground heat in. As a result, the bottom of the ice sheet is often tens of degrees warmer than its top.

Alone, this blanketing effect is enough to generate some melt along the bottom of Greenland. But now that the surface is melting more and more, heat transport from the ice surface to the bottom via liquid water funneling down to pool below is a more common occurrence.

Subglacial lake recharges due to surface melt Greenland

(Recharge of subglacial lake by surface melt near the Flade Isblink ice cap is an example of how surface melt can interact with basal melt, driving the formation of water at the ice sheet base. Image source: Nature.)

The way this heat transfer works is that rising temperatures over Greenland form more extensive surface lakes and melt ponds during the increasingly warm summers (and sometimes briefly during other periods). Often, the meltwater will find a crack in the ice and flow down to the ice interior. Sometimes the water remains suspended in the middle layers between the surface and the ice sheet base as a kind of heat bubble. At other times, the water will bore all the way down to the ground where it can form into pools or subglacial lakes.

At Flade Isblink in northeastern Greenland, such a filling of a subglacial lake was observed during the 2011 and 2012 melt years. As Greenland warms, such instances are likely to become more common. In this way, melt at the surface can add to the amount of heat trapped below the ice sheet — forming a kind of synergistic melt process.

The new NASA study helps our understanding of how such a process might unfold by showing the current extent of subsurface melt. The study combined physical models with observations to create this larger picture of bottom melt, telling a dramatic story of the opening period of human-forced Greenland melt, in which sub-surface melt is already very extensive.

Conditions in Context — The Level of Atmospheric Greenhouse Gasses is Now About Equal to Where They Were When the Greenland Ice Sheet First Formed

In context, the Greenland ice sheet is the largest repository of land ice remaining in the Northern Hemisphere. Covering a vast region of 1,710,000 square kilometers and rising up to 3 kilometers high at its tallest point, this ice sheet contains fully 2,850,000 cubic kilometers of ice. If all this ice melted, it would raise the world’s sea levels by around 7.2 meters (nearly 24 feet).

This enormous mountain of ice astride Greenland began to form about 11 to 18 million years ago during the Middle Miocene climate epoch. Back then, atmospheric carbon dioxide ranged from 405 to 500 parts per million. This decline from earlier, higher CO2 concentrations was allowing the world to cool enough to begin to support glacial ice in this region (around 4 C warmer than 1880s values).

Greenland_Mass_Balance

(Losses of Greenland mass from the surface zone have been accelerating during recent years. This loss has primarily been driven by human-forced warming of the Arctic. Though the North Atlantic Oscillation can generate melt variability by driving warm air flows toward or away from Greenland, the overall long-term driver has been a rapid warming of the Arctic region due to fossil-fuel emissions. Though we have a pretty good understanding of surface melt, our understanding of melt at the base of the ice sheet and heat accumulation there is less complete. Such an understanding may help us to predict future ice sheet behavior. Image source: Skeptical Science.)

Back then, Greenland’s ice was far smaller, far less extensive. It was a baby ice sheet that would grow into a behemoth as the Miocene cooled into the Pliocene — when CO2 levels fell to around 390 to 405 ppm — and then into the various ice ages and interglacials that followed (featuring atmospheric CO2 in the range of around 180 ppm during ice ages and around 275 ppm during interglacials).

Now, human fossil-fuel burning has put the ice sheet in a great global-warming time machine. With atmospheric CO2 levels hitting Middle Miocene ranges of 407.5 ppm at Mauna Loa this year, an accumulation of enough heat to significantly melt large portions of Greenland’s ice is a very real and growing concern. Exactly how that melt may unfold is still a big scientific mystery, but the risks are growing along with the heat and the new NASA basal melt study helps to shed a little light.

Links:

First Map of Thawed Areas Under Greenland Ice Sheet

NASA Maps Thawed Areas Under the Greenland Ice Sheet

Recharge of Subglacial Lake by Surface Melt Water in Northeast Greenland

Pliocene

Middle Miocene

Greenland Ice Sheet

Hat tip to Colorado Bob

Leave a comment

113 Comments

  1. climatehawk1

     /  August 9, 2016

    Tweet scheduled.

    Reply
  2. Colorado Bob

     /  August 9, 2016

    Greenland without the ice –

    Reply
    • Melt would tend to collect at the center or flush out through the channels. Greenland has its own tricky topography. It’s also more vulnerable to melt related swings in the weather. My opinion is that melt pulse may become a relatively common term in a decade or two. Especially if we don’t get our act together RE emissions.

      Reply
      • Cate

         /  August 9, 2016

        Someone—a scientist, wish I could remember who—compared Greenland’s topography to a waffle iron. Antarctica, by contrast, is more like a “greased griddle”, smooth and sloping. The implication was that the Greenland’s ice sheet might get stuck a bit more and tend to melt out, whereas the Antarctic sheet could just slide off….in a big rush. Ker-splash. Yikes.

        Reply
        • Edward

           /  August 9, 2016

          I believe that was Richard Alley, Department of Geo-sciences, Penn State

        • Mulga Mumblebrain

           /  August 10, 2016

          Here we face directly south to Antarctica, and the lemmings are rushing to buy sea-front property. When the mega-tsunami strikes, we might be OK, inland and 300 metres up-I hope.

        • lesliegraham1

           /  August 10, 2016

          Richard Alley also says that the melt water lakes that often drain through to the bottom of the ice in minutes have little to no lasting effect on the speed of the glacier’s travel toward the ocean.
          It speeds up locally for a short time but then returns to it’s original speed.
          This is due to the underlying topography being very rough.

          At 42:20.

        • lesliegraham1

           /  August 10, 2016

          Oooops! Make that at 31.05

        • Dr Alley makes some great points here.

          Overall, Greenland is not as vulnerable to basal melt from the warming oceans as Antarctica — whose reverse slope topographic features run many miles inland. That said, it’s certainly not immune with three large channels at the Jakobshavn, Zachariae, and Petermann glaciers. These run below sea level for a long ways inland but feature jagged terrain and an upward slope. The reverse slope features in Antarctica are more disturbing and the current consensus is that they generate a higher destabilization risk. However, these three Greenland basal zones are likely to prove to be weak spots that a warming ocean can and will exploit. So it’s not a question of Greenland being not vulnerable and Antarctica being vulnerable. It’s a question of Greenland being vulnerable to basal melt intrusion and Antarctica featuring some pretty ridiculous vulnerability.

          Greenland Melt Pond/Lake Formation A Separate Issue

          The central topography is a separate issue in that it creates a catchment basin for glacial melt. An area where large melt ponds can form and combine as the ice sheet gains heat. This is a separate feature that is unrelated to the ocean channel topography mentioned above. Large glacial melt pond formation in this central basin presents its own ice sheet destabilization risks — namely generating large glacial lakes behind unstable dam features and overtopping and spillage into the various ocean outlet melt channels which would speed glacial movement. This particular outburst flood risk potential due to propensity for glacial pond and lake formation is a somewhat unique risk feature for Greenland given its current (and growing) greater vulnerability to surface melt.

          Basal Lubrication Speeds Glacial Flows — Topography Determines How Much

          In any case, we have numerous observations where liquid water at glacier bases speeds glacial movement. Please see:

          http://www.livescience.com/38244-greenland-melt-speeds-ice-flow.html

          In addition, the model study in the post above found a correlation between increased rates of glacier movement as water lubricated the basal regions. This is true even in cases where topography is jagged due to the fill and overspill dynamic. So it’s not a question of whether basal lubrication increases glacial speed. It’s an issue of how much.

      • lesliegraham1

         /  August 11, 2016

        Thanks for taking the time to compose such a detailed reply Robert. Frustratingly I couldn’t find a link to the actual study being quoted in the (very interesting) livescience report you linked to, so I can’t really offer any comment on their findings.
        Livescience really should know better.

        Reply
  3. Colorado Bob

     /  August 9, 2016

    Haboob Sweeps Through Phoenix; Cars Stranded By Flooding in Tucson

    Heavy rain flooded parts of Tucson, Arizona, on Tuesday morning, leaving at least one car stranded up to its roof in water as the fast-moving currents quickly swamped roads.

    Two inches of rain or more were reported in some parts of the city as the storms zeroed in on an area with a low threshold for flooding, according to local storm reports

    https://weather.com/safety/floods/news/phoenix-dust-storm-tucson-flooding-news

    Reply
  4. Colorado Bob

     /  August 9, 2016

    I gotta think at some point this water is going to jack the ice sheet up in places , “crack it”, as well as grease it bottom. I seem to remember observations about this on a local basis , when a melt lake drains.

    Reply
    • I think these are good points.

      Generally, the sub glacial lakes will tend to fill and then overtop. This would send a pulse of water down hill. If it encounters a step or wall feature, it would cause the ice above to bulge before it again over-topped the catchment — speeding ice movement down hill as it went.

      If there’s a lot of ponding, over-topping, and draining activity below, you could see the ice sheet both bulging and sagging as the basal region became more dynamic due to the added heat.

      Reply
  5. Colorado Bob

     /  August 9, 2016

    Harris Co. official: ‘People enjoy floods’

    Comments from a Harris County Commissioner aren’t sitting well with some people.

    Precinct 3 Commissioner Steve Radack recently said some people want to get flooded so they can cash in, and he’s not backing down from his comments.

    Radack says this was one minute of a 90-minute community meeting in Cypress last Thursday night. However, to the audience of flood victims, it didn’t go over well.

    http://www.khou.com/news/local/harris-co-official-people-enjoy-floods-1/291405102

    Reply
  6. Colorado Bob

     /  August 9, 2016

    Killer article, with an amazing picture –

    California plans to log its drought-killed trees

    Looking north from Blue Canyon near Shaver Lake, copper-colored forests blanket mountain slopes that stretch ridge after ridge to the horizon. The patches of fading green that dappled these hillsides last fall have merged into an unbroken cover of rust-needled pines. At dusk, when the winds die down, an eerie stillness gives way to the muffled sound of munching as beetles chomp through one tree after another, thousands after thousands.

    This is the look — and the sound — of drought.

    https://www.hcn.org/issues/48.13/california-plans-to-log-its-drought-killed-trees

    Reply
    • The photo is of Bass Lake, near Oakhurst, California. I’m originally from Mariposa, about 35 miles away. We went swimming there, when I was a kid.

      It was really green. It looks totally different, now. I knew about the drought, and the dead trees, but somehow didn’t make the connection to Bass Lake.

      I’m really shocked- I felt it in the pit of my stomach, looking at that picture. It looks totally different.

      Logging and replanting is a good idea, I think- better than waiting for a big fire to burn it all down. A better choice might be to pelletize it and burn it in converted coal or natural gas fired power plants. Global warming keeps leaving us with a menu of bad choices.

      Instead of substantive ideas with how to deal with a destabilizing climate, Donald Trump is making ambiguous statements apparently hinting that Hillary Clinton and her Supreme Court picks might be shot, if she becomes President.

      What a vile man. This guy is scum, in my opinion.

      http://www.nytimes.com/2016/08/10/opinion/trumps-ambiguous-wink-wink-to-second-amendment-people.html?_r=0

      Reply
    • So sad. Replanting may help, if there’s rain. The dice appear to be loaded against such rainfall. And as time moves forward, the negative dice-loading just gets worse.

      Reply
  7. Jacob

     /  August 9, 2016

    Israel, the Water Superpower —

    “Israel’s advancements in desalination and water efficiency are case studies that policymakers across the world must consider as they evaluate how to provide enough fresh water for citizens and businesses.”

    http://www.triplepundit.com/2016/08/israel-water-superpower/?ref=yfp

    Here in California and the rest of the southwest we need to take notes and spend the money to create a massive desalination infrastructure of our own.

    Reply
    • Mulga Mumblebrain

       /  August 10, 2016

      And, when in doubt, Israel just steals it from the Palestinians. I reckon Canada’s water rightly belongs to its southern neighbours, too, but the dispossession will be more ‘amicable’.

      Reply
    • Wow 58 cents per cubic meter – that’s certainly cheap enough for municipal water, I think. Most cities in California charge their customers more, right now. Figure 2.83 cubic meters per 100 cubic feet. East LA seems to charge their customers about twice that:

      https://www.calwater.com/rates/water-charge-estimator/#

      Desalination takes energy – but if solar supplies the energy this could be close to carbon neutral, depending on how the solar cells and desalination components are produced.

      Reply
      • There’s a lot of minerals in seawater. We can co-produce salts and lithium this way and reduce outlet pipe impacts if we’re smart about it.

        Reply
  8. Colorado Bob

     /  August 9, 2016

    “create a massive desalination infrastructure of our own.”

    Jacob ,
    This looks great on paper, but these plants discharge a huge amount of concentrated brine back into the ocean. It’s so salty that nothing can live in it. Remember , everything has a price. The great law of physics. Remember , everything has a price.

    Reply
    • Jacob

       /  August 9, 2016

      Understood, CB. Perhaps I’m naïve to think humanity can (or is collectively willing to try to) figure out a way to get rid of the brine “cleanly”. I suppose the evidence to the contrary (about our willingness to clean things up) overwhelming speaks for itself. Like we can bury anything, or put anything in the ocean/atmosphere and it will just magically disappear.

      Allowing for an admittedly fantastic/ridiculous imaginary suggestion … The only thing I can figure to theoretically and truly get rid of brine, among other toxic/deadly/etc. wastes without harming the Earth is to send that waste toward the sun and let the sun do its thing. How to cleanly get it off the planet without it exploding all over the atmosphere is quite the tricky task. One beyond my low level education and laughable financial status.

      Reply
    • Interestingly enough, this concentrated brine is denser than seawater, and might carry CO2 down into deeper water if discharged in sufficient quantity, like the Adriatic carbon pump:

      The continental shelf carbon pump in the northern Adriatic Sea (Mediterranean Sea): Influence of wintertime variability.

      http://www.sciencedirect.com/science/article/pii/S0304380015003300

      I noticed this by the persistent low CO2 area in the Adriatic between Italy and Greece, seen on Earth.nullschool, and apparently it’s a known phenomenon with a known cause- heavy brine created by evaporation sinking and carrying CO2 down into the deep ocean.

      Of course this leads to long term ocean acidification (everything has a price) but it does pump some CO2 out of the air, temporarily.

      Reply
      • Make that between Italy and Croatia, the persistent carbon sink.

        Reply
        • Syd Bridges

           /  August 10, 2016

          One thing that worries me about discharging concentrated brine back into the sea is that it may well speed up ocean stratification. Also, I have a suspicion that the archaeobacteria that could produce hydrogen sulphide are more likely to be tolerant to high salt than their oxygen breathing competitors.

        • Hi Syd-

          Dunno about the archaeobacteria. Not sure about the stratification, in the Adriatic the brine seems to encourage deep circulation.

          The Adriatic seems to be both a carbon sequestration pump and also a very productive area in terms of sea life:

          “The northern Adriatic Sea, a marginal sea of the Mediterranean, is both a highly productive shelf area and a dense water formation site. The combination of productivity and dense water formation on the shelf (i.e., the continental shelf carbon pump process) enhances the vertical transport of carbon into the interior of the Mediterranean Sea contributing to the atmospheric CO2 sequestration.”

          I would think that brine sinking down would encourage oxygenation of the deep water and discourage hydrogen sulfide production. Don’t know.

          Let me read this whole paper and get back to you guys:
          http://www.sciencedirect.com/science/article/pii/S0304380015003300

          Of course, the brine produced by evaporation in the Adriatic has to be a lot less concentrated the brine from reverse osmosis desalination. So, desalination brine would likely have to be diluted something like 1:10 in sea water before discharging it, I think, even if we were trying to create a carbon pump.

          Likely drying the brine for the minerals and the lithium is the best answer, like Robert was saying.

          But ever since I read about he Adriatic carbon pump I’ve been wondering if we could use solar ponds to produce brine to get more of these going. And there is the long term concern about ocean acidification, of course, that argues against creating dense water carbon pumps.

    • So the attempted solution to this is to pump the brine into a brine flat. The flat allows the salt and minerals to deposit on land as the remaining water evaporates out. In my view, the brine is a resource — sea salt and lithium are two co-production commodities that come to mind. Lithium being useful in energy storage and electric transport batteries…

      I think it’s possible to work to save these communities by providing them with desalinated water while also adding regulations and resource management strategies that take the brine pipe out and replace it with something more positive that makes use of the resources in the brine.

      Reply
  9. Cate

     /  August 9, 2016

    Wild blue mussels in the Gulf of Maine may be in trouble because of warming waters.

    “After comparing contemporary survey data with 40 years of historical benchmarks, Cascade Sorte, assistant professor of ecology & evolutionary biology at UCI, and colleagues from around the U.S. report that the blue mussel numbers have declined by more than 60 percent along the gulf coastline, which stretches from Cape Cod north to the Canadian border. The mussels used to cover as much as two-thirds of the intertidal zone, but they now cover less than 15 percent”

    “The Earth is in the midst of a biodiversity crisis,” Sorte said, “and the Gulf of Maine is one of the fastest-warming areas of the global ocean, so the impacts of ocean warming are likely to happen much sooner there….The shoreline looks completely different than it used to,” Sorte said. “Where mussels were one of the most abundant and iconic species, now barnacles and algae dominate. The local inhabitants see these changes happening before their eyes.”

    “The lesson so far …. is that key foundation species are disappearing, and this can lead to regime shifts and large-scale, even catastrophic, changes in the ecosystem,” Sorte said.

    https://news.uci.edu/research/why-are-new-englands-wild-blue-mussels-disappearing/

    Reply
    • – This is applicable in so many ways: “…key foundation species are disappearing, and this can lead to regime shifts and large-scale, even catastrophic, changes in the ecosystem” .

      Reply
  10. Colorado Bob

     /  August 9, 2016

    Trump’s loaded words fuel campaign freefall

    At a rally in North Carolina on Tuesday, Trump applied his signature sarcasm to a political third rail, stating that “the Second Amendment” may be the only way to stop Clinton from getting to appoint federal judges if she defeats him in November.

    Read more: http://www.politico.com/story/2016/08/donald-trump-campaign-statements-

    Reply
  11. Greg

     /  August 9, 2016

    Robert, is it accurate to say we are actually leaving the middle Miocene equivalent as the co2e is approaching the 500 ppm level?

    Reply
    • Colorado Bob

       /  August 10, 2016

      Greg
      I followed the collapse of the forests on the Valence Caldera in New Mexico.
      14 years ago.

      These are the oldest trees, and strongest trees in the Southwest. They are all gone.

      They did not grow back.

      Reply
    • Tricky, complex question, really. This due to how we measure ECS and exclude slow feedbacks.

      From a transient climate sensitivity (TCS) perspective (short term, fast feedback warming), absolutely. From a 100 year climate sensitivity issue, probably. From a long term climate sensitivity perspective — no if we stop burning fossil fuels and if the carbon stores (methane and CO2) behave themselves for the most part.

      The issue is that methane makes up about 70 ppm of that CO2e. Methane is short-lived and if humans stop emitting it, a big chunk drops out pretty quick unless it is re-supplied by Earth System feedbacks.

      For simplicity I’ve been using CO2 as the baseline due to its longer term global warming potential (GWP). But that’s probably too conservative and not entirely accurate either. For the 500 year timeframe, you could probably knock about 40 ppm off the current 490 CO2e for GWP. So to have a high confidence that we’ve left the Miocene and entered the Oligocene from a long-term, GWP perspective, then you probably need to get to 540 CO2e.

      Note that we hit that threshold in about 15 years at current rates of GHG additions.

      Communicating this complexity presents a number of problems. What I’ll continue to do is break it out into the CO2 and CO2e figures. Note that we’re about 18 years away from hitting the Eocene boundary threshold at 550 ppm in the full CO2e measure.

      Reply
  12. Griffin

     /  August 10, 2016

    Great photo here.

    Reply
  13. Jay M

     /  August 10, 2016

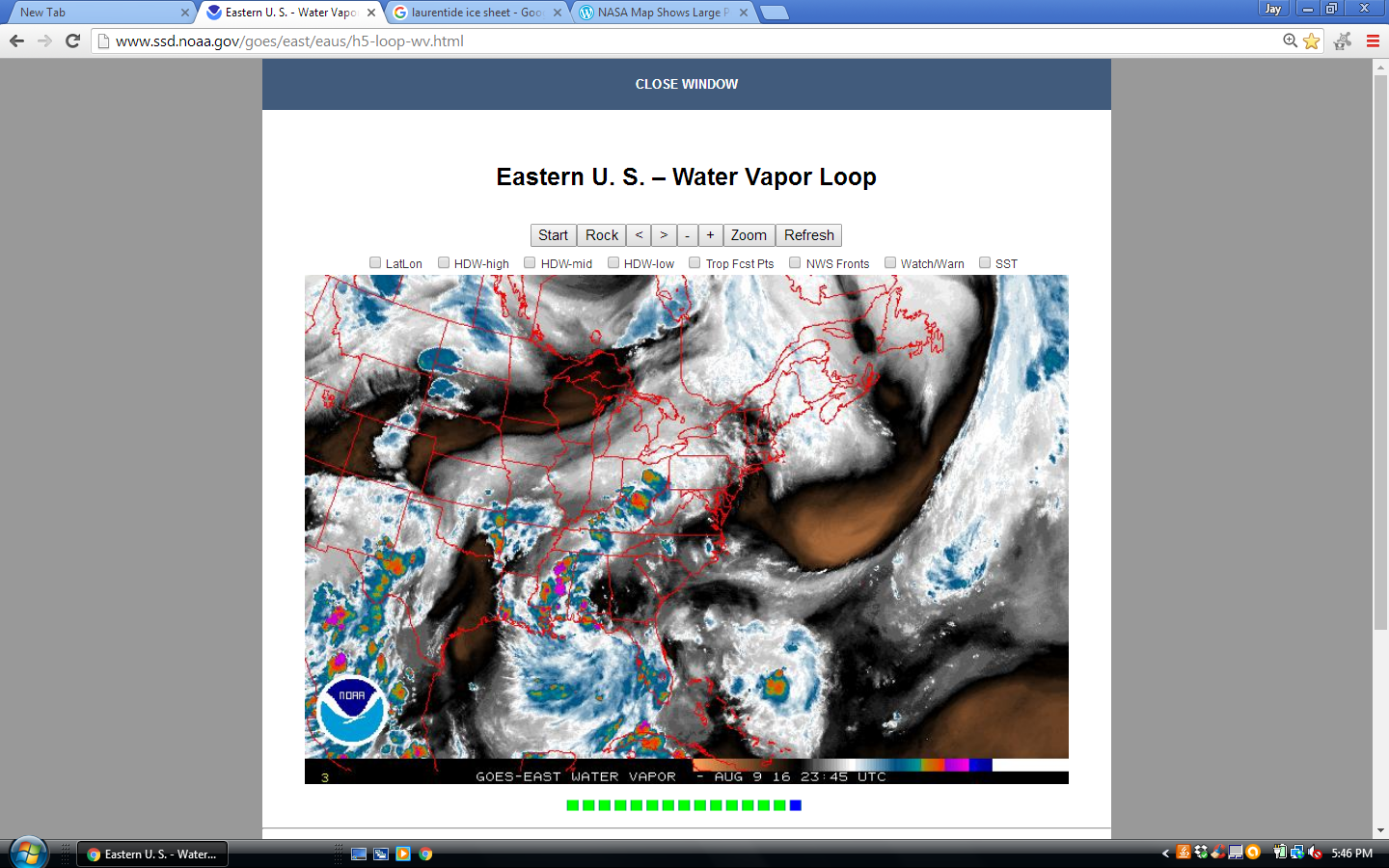

    Isn’t this what we saw with the Laurentide, ice accumulations blown away by the summer breeze?
