Smashing Through 490 — Fragmenting Prospects for Avoiding 2 C Warming

“The IPCC indicated in its fourth assessment report that achieving a 2 C target would mean stabilizing greenhouse gas concentrations in the atmosphere at around 445 to 490 ppm CO2 equivalent or lower. Higher levels would substantially increase the risks of harmful and irreversible climate change.” –Johan Eliasch

NOAA's Greenhouse Gas Index

(NOAA’s greenhouse gas index shows that CO2e concentration for 2015 averaged 485 ppm. Given recent rates of rise, the 2016 average should be near 490 ppm CO2e. At the latest, this key threshold will be crossed some time during 2017. Image source: NOAA’s Earth Systems Research Laboratory.)

*****

There are a few things we know about climate change that should really keep us up at night. The first is that the world is warming, and this warming of the Earth, in so many ways, is dangerous to human beings and all the other innocent creatures living here.

The second is that, over recent years, this warming has been very rapid. In the three years from 2014 through 2016, the Earth’s atmospheric temperature is likely to have increased by 0.2 degrees Celsius or more to around 1.2 C above 1880s levels. When thinking about this in absolute terms, it doesn’t sound like much. But in geological terms, this is very rapid warming, especially when you consider that, at the end of the last ice age, it took about 400 years to produce a similar amount of atmospheric temperature gain.

What all this boils down to is that as global temperatures have spiked, we’ve rapidly crossed an established climate threshold into a far more geophysically dangerous time.

Surging Levels of Heat-Trapping Gasses

405 parts per million carbon dioxide. That’s about the average level of CO2 accumulation the Earth’s atmosphere will see by the end of 2016, due primarily to fossil-fuel burning. It’s a big number. The Earth hasn’t seen a number like that in millions of years. But 405 ppm CO2 doesn’t tell the whole story of heat-trapping gasses in the atmosphere. To do that, we have to look at another number — carbon dioxide equivalent or CO2e.

The Keeling Curve August

(During a typical September and October, daily or weekly values may briefly dip below 400 ppm CO2, as detected at the Mauna Loa Observatory. But after September-October 2016, it’s unlikely that you or I will ever see such low levels of CO2 from that measure again in our lifetimes. Image source: Scripps Institution of Oceanography.)

490 ppm CO2e. That’s about the total amount of CO2-equivalent heat forcing from all the human-added greenhouse gasses like CO2, methane, various nitrogen compounds, and other gaseous chemical waste that the Earth’s atmosphere will see by late 2016 to early 2017.

Why is this a big deal?

Four reasons —

First, hitting 490 CO2e crosses the Intergovernmental Panel on Climate Change‘s (IPCC) lowest climate threshold. If this were a highway, and climate change were a collision, we’d now be careening through the first guardrail.

Second, 490 CO2e represents significant current and future warming (and there’s good reason to believe that IPCC’s estimates of that warming may be a bit conservative).

Third, it signifies that we have now fully entered the era of catastrophic climate change, with some bad climate outcomes almost certainly locked in as a result. We see a number of these instances now in the form of extreme rainfall events, extreme drought, coral bleaching, sea ice and glacial melt, threatened crops, ocean anoxia and dead zones, widespread harmful algae blooms, ocean acidification, and expanding infectious disease ranges. However, what we are experiencing now is just the tip of the (melting) climate change iceberg if we do not rapidly respond.

Fourth, if we were never really aware before that we very urgently need to get serious about swiftly cutting fossil-fuel emissions, protecting and regrowing forests, and working to help people to adapt to climate change, then this is our wake-up call.

Crossing the First Climate Threshold — 490 ppm CO2e

How did 490 ppm CO2e become a climate milestone? In short, it represents the threshold at which the first of four global-warming scenarios is basically locked in.

To understand this more, we need to take a closer look at these four scenarios, which were established by the IPCC in 2007. The IPCC calls these scenarios Representative Concentration Paths or RCPs. The four potential pathways are informed by the amount of fossil fuels potentially burned through the year 2100, the levels of CO2e heat-trapping gasses in the atmosphere as a result, and how much the world consequently warms over this timeframe.

RCPs range from 2.6 to 8.5 watts per meter squared, with these measurements indicating the amount of added heat from the greenhouse gas additions trapped at the top of the atmosphere. A more direct measure is to look at the total greenhouse gas thresholds for each scenario. Broken down, the four RCP pathways represent 490 ppm CO2e (RCP 2.6), 650 ppm CO2e (RCP 4.5), 850 ppm CO2e (RCP 6.0), and 1370 ppm CO2e (RCP 8.5). For reference, atmospheric CO2e levels just prior to the start of large-scale fossil fuel burning were around 300 ppm. By comparison, 1370 ppm CO2e is about equivalent to the levels during some of the worst hothouse mass extinctions the Earth has experienced.

In a nutshell, RCPs represent potential warming scenarios. A middle-range temperature increase estimate by the year 2100 for each scenario can be seen below in this table provided by Skeptical Science:

rcp pathways

Developed at the IPCC’s 2007 meeting, these RCPs also describe a range of potential human civilization responses to global warming. RCP 2.6 allows for fast emissions cuts beginning at the time of the 2007 meeting. These cuts would swiftly level off and then reduce fossil-fuel emissions and ultimately generate one of the milder warming scenarios. The IPCC envisioned that warming would remain near 1.5 C this century under these emissions cuts. Scientists hoped this scenario would allow the avoidance of most of climate change’s bad outcomes.

RCP 4.5 assumes somewhat less aggressive emissions cuts, with fossil-fuel burning and related carbon emissions peaking near 15 billion tons per year by the mid-2040s. Stronger warming is locked in with this scenario — about 2.4 C according to IPCC — and scientists were doubtful that serious climate impacts could be avoided.

emissions-graph-rpc-small

(We’ve pretty much missed the window for the IPCC’s mildest possible climate scenario, RCP 2.6, which would have required strong policies and policy support almost immediately following the IPCC’s 2007 meeting. Image source: Skeptical Science.)

RCP 6.0 shows emissions cuts that are slow to unfold. Global carbon emissions would peak around 19 billion tons per year by 2060 and then rapidly drop off. Warming under this scenario is considerable, hitting 3 C by the end of this century. So much warming and such high levels of greenhouse gasses would result in some seriously bad outcomes.

The final pathway, RCP 8.5, represents an absolute nightmare climate scenario. Under this path, real emissions cuts are not achieved. Despite growth in renewable energy, all energy use continues to grow as well, including fossil fuels. As a result, in this scenario, the IPCC expects the Earth to warm by a catastrophic 4.9 C by 2100.

In the context of understanding climate change, particularly for someone interested and patient enough to read the IPCC reports, the various RCP scenarios were a real help in exploring climate change options and outcomes. They helped many scientists and policymakers provide clear warnings and rewards for action by governments, the public, and business leaders.

projected impacts of climate change

(Climate change produces multiple difficult-to-predict impacts. As temperatures rise, conditions grow ever more extreme. In the graph above, it’s worth noting that sea-level rise is already an issue for many cities and regions including numerous Pacific islands, Bangladesh, the Indus Delta region, South Florida, New Orleans, New York, and the various low-lying coastal and river delta regions around the world. Image source: Federal Highway Administration.)

But despite very clear communication and activism from scientists like Dr. James Hansen, policy bloggers like Joe Romm, and climate activists like Bill McKibben, overall global emissions policy has not moved swiftly enough to stay within the RCP 2.6 pathway in the 9 years since its creation. In fact, decent global emissions reduction policies didn’t begin to universally take hold until recently, in 2014 and 2015, and those implemented were often ardently opposed by fossil fuel-related political interests in countries like Australia, Great Britain, Germany, Canada, and the United States.

As a result, emissions stayed near or just below worst-case pathway ranges (RCP 8.5). As of this year, the window for achieving the RCP 2.6 scenario — or the mildest and most optimistic warming scenario — appears to have closed.

Possibly More Warming From 490 CO2e Than We Feared

Hitting 490 CO2e in 2016 means that the 1.5 C warming IPCC predicted for this amount by 2100 is almost certainly locked in. With the world hitting near 1.2 C above 1880s temperature averages in 2016, some reasonable questions have been raised, the most relevant being if 490 ppm CO2e will result in more warming than IPCC predicted.

To be fair, the 1.5 C figure above is a simplification of model predictions ranging from about 0.9 C to around 2.3 C during this century under a 490 ppm CO2e forcing. However, since we’ve already surpassed the lower portion of this range, and we’re barely into the beginning of this century, it appears that some of the lower sensitivity model runs were rather far off the mark. Moreover, paleoclimate proxy temperature data indicates that 490 ppm CO2 during the Middle Miocene produced warming in the range of 4 C long-term (over hundreds of years). Given this implied long-term impact, and coupled with annual readings that are already in the 1.2 C range, it’s possible to infer an ultimate warming closer to 2 C by 2100 from a maintained 490 ppm CO2e. Hitting such a mark would only require about 0.11 C warming per decade — a rate of decadal warming about 40 percent slower than the temperature rise seen from the late 1970s through the 2010s.

Arctic Sea Ice August 9 2016

(Amplifying feedbacks due to loss of sea ice reflectivity in the Arctic and Antarctic, reduced carbon-store uptake and carbon-store emissions can result in an overall greater sensitivity to an initial heat forcing such as the current 490 ppm CO2e. Paleoclimate proxies hint that these feedbacks may cause the Earth System to be more sensitive than IPCC models currently indicate. Image source: LANCE MODIS.)

The paleoclimate-implied warming from the other climate scenarios is likely higher as well. RCP 4.5 probably hits closer to 3 C under such a climate sensitivity range. RCP 6.0 probably sees 4 to 4.5 C warming by 2100. And the worst-case RCP 8.5 probably achieves closer to 6 C warming.

It’s for these and other reasons that some scientists say that avoiding 1.5 C at this time is probably impossible. Meanwhile, it’s pretty reasonable to say that avoiding 2 C presents a huge challenge requiring a very rapid response, a goal that will probably require reducing the atmospheric CO2e levels below their current ranges.

CO2e Increasing by 3 ppm Per Year

Human beings are still dumping massive volumes of carbon into the atmosphere. Carbon emissions are still near record-high levels. As a result, atmospheric CO2e levels are rising by about 3 ppm or more each year. For 2016, CO2 alone may rise by 3.4 ppm or more, and CO2e may jump by more than 4 ppm — to hit near 490 ppm CO2e. This is due in part to the 2015-2016 El Nino’s cyclical warming of the Equatorial oceans, forests, and lands on top of the already-strengthening heat of human warming. And this added heat reduces the ability of these carbon sinks to take in CO2.

Even if this rate of CO2e rise is just maintained, it’s possible that we’ll see 1.5 C warming not by the end of this century, but by the early 2030s. And as the world heats up, it’s likely we’ll see additional emissions coming as carbon sinks become stressed and stop taking in such high volumes of greenhouse gasses or even turn into sources.

The result is that the challenge presented to us now is far greater, far more urgent than that of 2007. We risk, over the next few decades, locking in not just 2 C warming, but 3 C warming or more if we do not act swiftly and seriously. And with 1.5 C warming coming with almost 100 percent certainty, we need to ramp up climate-change mitigation strategies as well as provide aid and succor for the increasing harms, dislocations, and inequalities that will likely emerge.

Links:

NOAA’s Earth Systems Research Laboratory

The Keeling Curve

Intergovernmental Panel on Climate Change

Hansen and Sato Estimated Paleoclimate Temperatures

Skeptical Science — Beginner’s Guide to RCP Scenarios

Transportation’s Role in Reducing Greenhouse Gas Emissions

LANCE MODIS

Carbon Sinks in Crisis

Climate Change — Financing Global Forests

Leave a comment

206 Comments

  1. Stop burning fossil fuels now: there is no CO2 ‘technofix’, scientists warn

    Researchers have demonstrated that even if a geoengineering solution to CO2 emissions could be found, it wouldn’t be enough to save the oceans

    https://www.theguardian.com/environment/2015/aug/03/stop-burning-fossil-fuels-now-no-co2-technofix-climate-change-oceans

    Reply
  2. – USA – And the carbon/heat rain bombs etc. just keep on coming.

    Reply
  3. Reply
  4. Reply
    • Shawn Redmond

       /  August 13, 2016

      DT this must be cynicism, you know full well we have no carbon budget left.

      Reply
  5. Climate inertia

    The climate system also has a tremendous amount of inertia built in. And like with the supertanker, this means that early action is required if we want to change the climate’s course. This inertia is a crucial aspect of the climate system, both scientifically but also societally – but in the latter realm it’s a very underappreciated aspect. Just do a mental check: when did you last hear or read about the climate’s inertia in mainstream media or from politicians?

    https://ourchangingclimate.wordpress.com/2016/08/09/climate-inertia/

    Reply
  6. Cate

     /  August 12, 2016

    What part of “stop burning filthy fuels now” is so hard to understand?

    Unless our governments do what is necessary right now to develop and implement a co-ordinated and co-operative master plan to get the world to zero—ZERO—emissions asap, we are going to need a miracle to save life on earth. We have no time now to rely on voluntary, industry-driven, market-friendly solutions. It’s do or die. God help us.

    Reply
  7. – Fantastical ‘Chemtrails’ the meme that takes one’s mind off of the real danger of atmospheric air pollution, etc.

    – Repeat after me: “Contrails are becoming more abundant as air travel expands. Also, it is possible [PROBABLE/ACTUAL] that climate change is causing contrails to persist for longer than they used to,” .

    – Pioneering chemistry study finds no evidence of a ‘chemtrails’ conspiracy

    In a first of its kind effort, a large group of top atmospheric chemists has weighed in on one of the most persistent conspiracy theories on the internet: that the U.S. government is involved in a campaign to deliberately spray chemicals from planes at high altitudes.

    This “chemtrails” conspiracy theory is bunk, the experts conclude in a new study published this week in the journal Environmental Research Letters.

    Study co-author Steven Davis, an associate professor of Earth system science at UC Irvine, said the chemtrails conspiracy theory is tied to the growth of the internet. The study also cites evidence that it is linked to growing distrust of elites and social institutions.

    “The chemtrails conspiracy theory maps pretty closely to the origin and growth of the internet, where you can still find a number of websites that promote this particular brand of pseudoscience,” he said in a press release.


    “Contrails are becoming more abundant as air travel expands. Also, it is possible that climate change is causing contrails to persist for longer than they used to,” Caldeira said.

    http://mashable.com/2016/08/12/chemtrails-debunked-in-new-study/#TzirnhUbGEq6

    Reply
      • Shawn Redmond

         /  August 13, 2016

        Funny thing about contrails. I was musing about them just yesterday as I watched several jets going west several minutes apart leaving no trail what so ever. At that time we were experiencing humidity in the mid 70’s on the ground. I watched these planes gleaming in the sun light for several minutes until they disappeared from sight to the west. No contrail! The moisture was not up there! And yet the US south was drowning all the way up to New England a scant way south west. Whats up with that?

        Reply
        • danabanana

           /  August 13, 2016

          The atmosphere is layered that’s what’s up. Sometimes you have high humidity at surface level but very low at 30,000 feet. The opposite is also true. Also depends where you are on the planet. Above the Sahara for example there are no contrails as the air column there is bone dry throughout most of the year. Anyway there are studies on contrails from the late 50’s and 60’s that hit the nail on the head back then… if only conspiracy theorist read more published scientific papers instead of internet blog rolls.

    • Mulga Mumblebrain

       /  August 13, 2016

      I was in the UK, in the Lakes District, in 2010 when a small Icelandic volcano farted a little dust, stopping air-traffic in the north Atlantic. Within a day or so the sky turned from its habitual milky white (many, many planes fly over north-west UK on the way across the Atlantic) to a lovely colour blue. Global dimming is hiding a degree or so Celsius already baked in, and we might live to regret the Chinese using less coal, just as we’d regret them still using as much as they do. Damned if you do and damned if you don’t. The Murdoch MSM here still maintains that the whole thing is a sham, as does much of our political caste. Others seem utterly indifferent.

      Reply
      • “…the sky turned from its habitual milky white (many, many planes fly over north-west UK on the way across the Atlantic) to a lovely colour blue.”

        – The same thing happened in the days immediately after 9-11 when air travel was grounded.
        The airline industry has done a great disservice to our precious atmosphere. And it goes on each and every day too.

        Reply
  8. JPL

     /  August 12, 2016

    Robert, your first graph made me think of this one:

    Human Population 1 CE – 2050 CE

    So many hockey sticks!

    John

    Reply
    • Andy_in_SD

       /  August 13, 2016

      The unfortunate I see in that graph is “What goes up, must come down”.

      Reply
      • Steven Blaisdell

         /  August 13, 2016

        Yes. There is going to be a very large reduction in human population this century. This has already begun, and will, I predict, have some sooner rather than later surprises. It will not be entirely caused by food poverty and starvation, although this will be a primary factor. Disease, interstate conflict, heat (think Southern India), migratory loss, internecine predation, shortage and contamination of potable water….the relative stability of our 21st century world is a distinct anomaly in the history of the human race, a carefully crafted and maintained state that requires a lot of time and effort. Looking at the forces that shake even the wealthiest societies, never mind barely cohered countries like Pakistan or Mexico or anywhere in Africa, and it’s hard to see how the inevitable climate disruptions, combined with all other factors in play, don’t lead to a large externally forced shrinkage of human population. Science isn’t going to pull our sorry a**es out of this particular fire.

        Reply
        • Mulga Mumblebrain

           /  August 13, 2016

          People facing climate destabilisation induced famine, pestilence, war and sheer uninhabitability will move to save themselves and their children. What we see in the flight of Syrians and the desperate plight of those fleeing through Libya across the Mediterranean is but the first, tiny, glimpse of things to come.

        • Under BAU or near BAU, risk is relatively high for net human population losses by mid Century. This hasn’t yet even begun to have begun. The impacts we see now are concerning and disruptive. But not anywhere near that scale yet.

          The Center of gravity for climate change issues, however, is not human population growth, it’s rate of carbon consumption. Though population is a compounding factor — as it is with many harmful consumption behaviors — it is not the primary factor. If the wealthiest 10 percent in the world completely removed their carbon emissions, human carbon emissions would fall by more than half. The issue, therefore, is more with a few hundred million or so than with 7 billion, and all the moreso as you move up the economic spectrum.

          This is why disincentivizing negative consumption is such an amazingly effective tool for reducing climate impacts. Carbon taxes on that 10 percent would incentivize conservation and an energy switch. And the longer we wait to do this, the more harm gets locked in.

          In other words, it we all had the carbon footprints of subsistence farmers or less, then population wouldn’t be a factor with regards to climate change. Population is absolutely a factor RE sustainability. However, you can’t get a complete sustainability equation unless you add in the variable of consumption and look at how that consumption is distributed.

          Hyper focus on population is, therefore, a short-sighted distortion. Especially as it relates to climate change where population is an issue. But carbon consumption and especially a high rate of carbon consumption by a relatively small in comparison population is the center of gravity. To say anything else is to point to a red herring. In other words, it’s a distraction.

        • Well said Robert. I always appreciate how your comments steer away from blaming those who can’t solve the problem and focus on compassion instead. It’s really frightening where we’re going, but you’re right, it wouldn’t take much for the wealthy citizens of the industrialized countries to decarbonize. Maybe a few less nice dinners out per year, one fewer sporting event per year, and a slightly smaller big screen tv and ta-da, you have enough funds to decarbonize. Get the low hanging fruit first, worry about the difficult parts later. Especially because technology may have come up with a solution for the difficult problems later while we’re working on the easy ones.

    • Mulga Mumblebrain

       /  August 13, 2016

      That’s a scythe, not a hockey stick.

      Reply
  9. Kevin Jones

     /  August 12, 2016

    Just an editing question Robert: About 400 years? 20,000 YBP-10,000 YBP + 5C = 2,000 years per degree C. Or am I missing something?

    Reply
    • Kevin Jones

       /  August 12, 2016

      Mis-read. This 100F heat index is poaching my noggin. You are (as usual) right.

      Reply
  10. Kevin Jones

     /  August 12, 2016

    Excellent job, by the way, Robert.

    Reply
  11. An excellent summary. I think what’s most worrying is the idea, expressed in passing here but often in your other posts, that what we’re seeing in the real world (and the paleoclimate modelling) “hint that these feedbacks may cause the Earth System to be more sensitive than IPCC models currently indicate.” We’ve spent a huge amount of effort on the question of sensitivity to co2–i.e., how much will the temp rise given a specific quantity of carbon–but rather less on the planet’s sensitivity to temperature, which in the end is the real question. Watching, say, Louisiana tonight is a reminder that we’re increasingly in uncharted territory–and that alone is unnerving

    Reply
    • Warm welcome to you, Bill.

      Reading you and Hansen in the 90s and 2000s really scared the living daylights out of me. Enough to do everything, to dig in with both hands. Problem is, the more you dig, the scarier it looks.

      Would that the policy-makers wake up and get the message you’ve been responsibly sending all these years and decades. As you know all too well, the longer we wait, the worse acting too late looks like.

      Just keep thinking if we just make things a bit more clear, that people might really start to listen and work hard enough to make a difference. This post was another college try. It means much to me that you recognized it.

      If you ever need anything at all, just give a shout.

      Fair winds and following seas,

      –R

      PS — For some reason, it is now generally frowned upon to talk about carbon feedbacks (or any of the other so-called outside climate risks) in blogging or media. This generates an issue where widespread reporting will likely occur after the outlier event happens — when it is too late to do any good.

      Reply
  12. – Graphs in parallel to population — Numbers of motor vehicles:

    USA – 2011
    – nakedcapitalism.com/2014/01/developed-world-hit-peak-car-use.

    Reply
    • – волгоспецстрой.рф/number-of-carsin.php

      Reply
    • – autonews.gasgoo.com

      Reply
    • Table 1-11: Number of U.S. Aircraft, Vehicles, Vessels, and Other Conveyances

      – Highway, total (registered vehicles)
      1960 =74,431,800
      2014 = 260,350,938

      – .rita.dot.gov/bts/sites/rita.dot.gov.bts/files/publications/national_transportation_statistics

      Reply
  13. Darvince

     /  August 13, 2016

    You may be writing about the Louisianan rain bomb very soon:

    Reply
  14. Jay M

     /  August 13, 2016

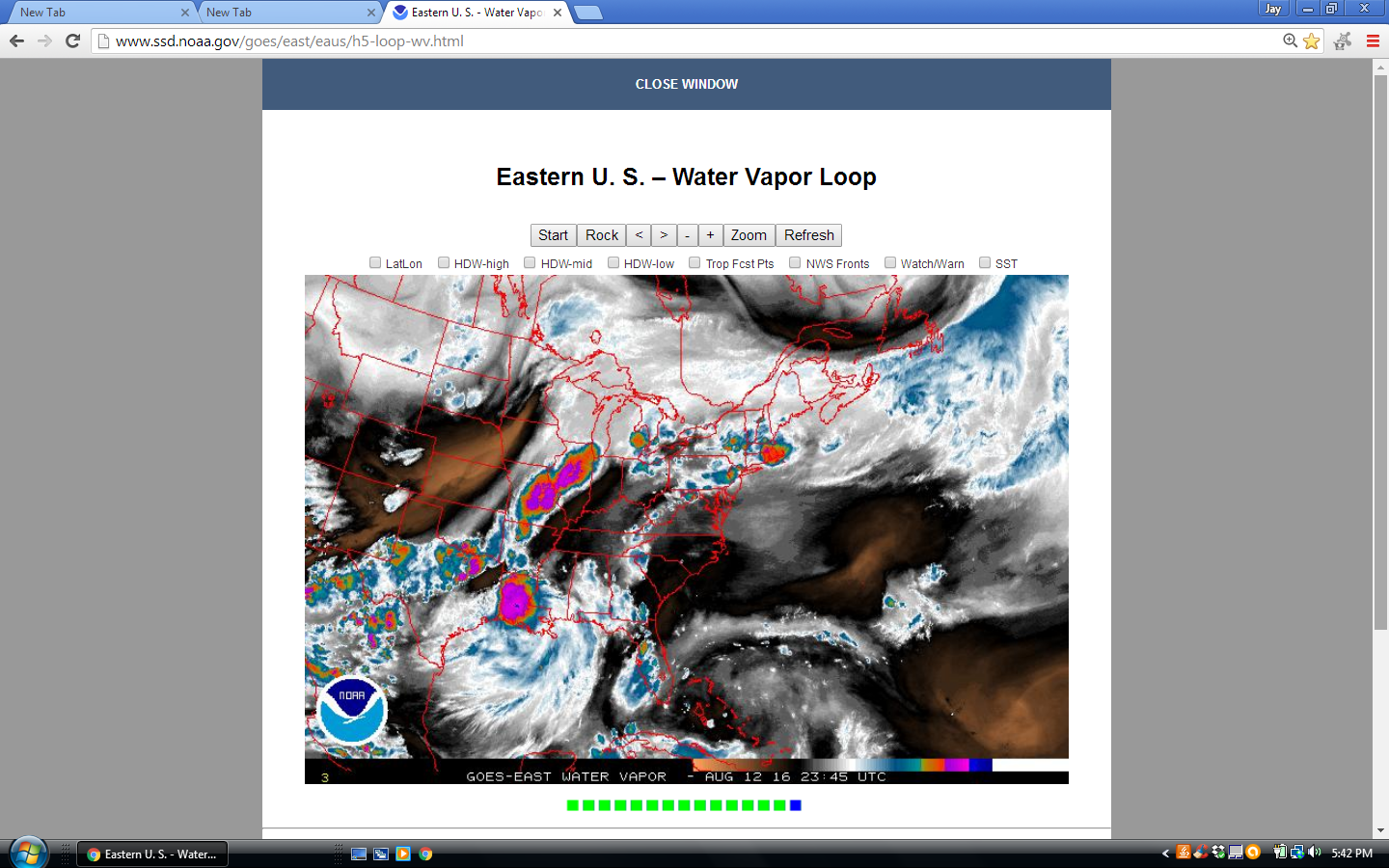

    Moisture is bright this afternoon in NA southeast:
